10 kw Hybrid Solar system
Характеристики
Класность
Высокий
Гарантия
2 года

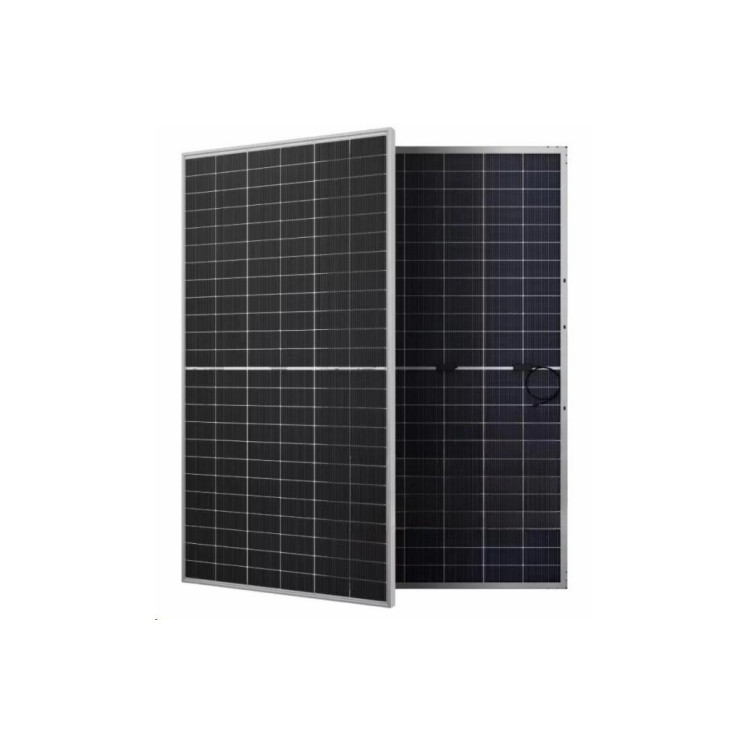

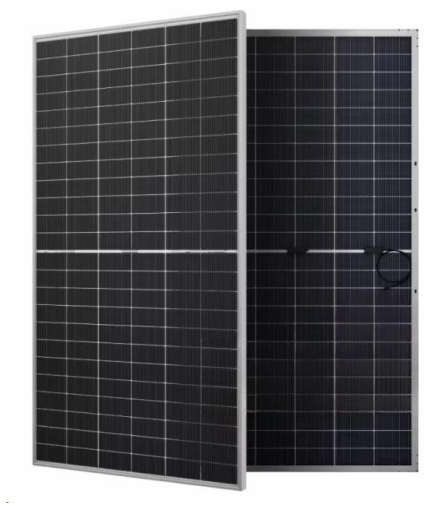

1. Mono Solar Panel
Brand: Wonvolt
Maximum power: 565w
Model: WV-60KUN-565M
Dimision: 2278*1134*35mm

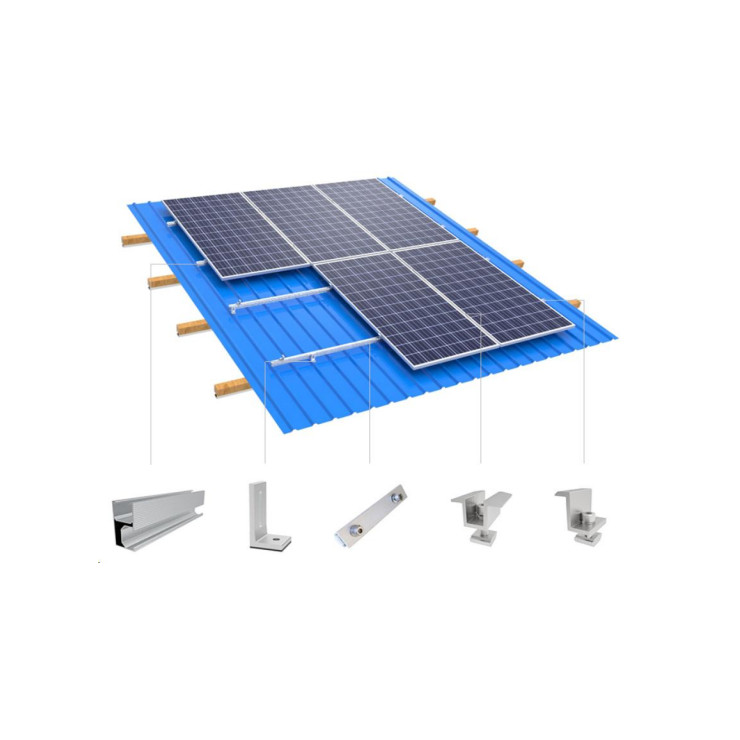

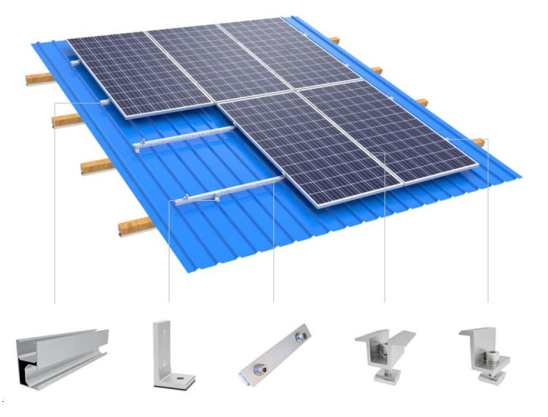

2 Mounting Structure
HS Code: 761090
Pitched roof mounting brackets for 18pcs panels, one whole set
3. Hybrid Inverter 10KW
HS Code: 850440
Model: AF10K-TH
Rated voltage: 380V 50HZ
Rated power: 10KW
Input max. power: 15KW
4. Lithium battery system 9.6KWH 192V 50Ah
HS Code: 850440
Model: WV-S14HV
Nominal capacity: 14.4kwh
Discharge current: 25A
Dimension: 680*185*1425mm

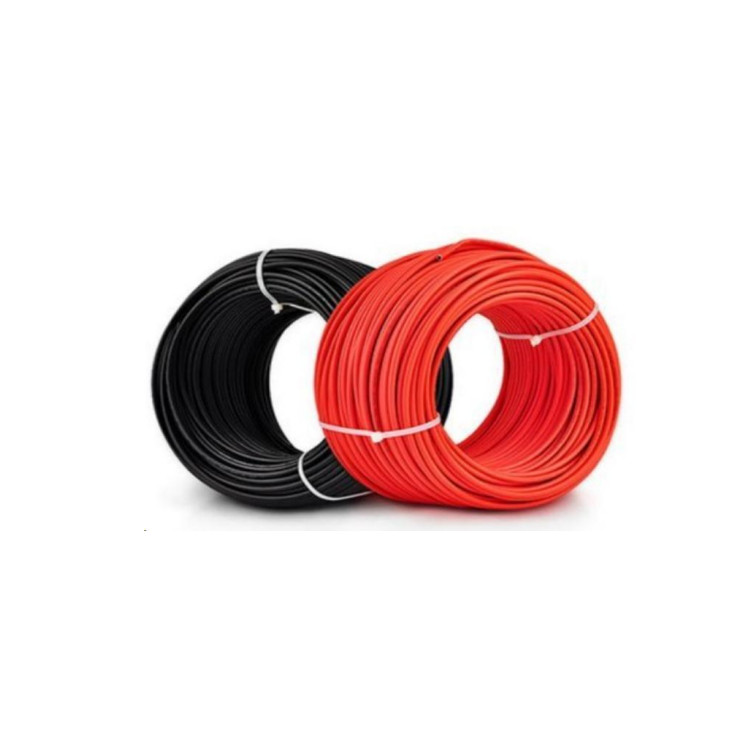

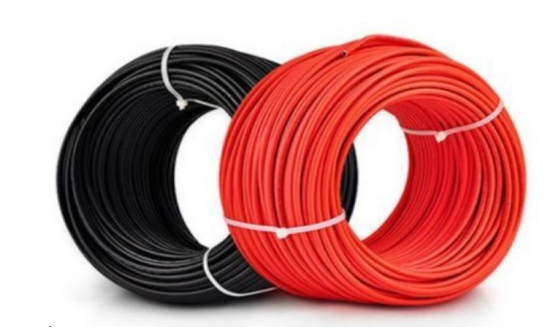

5. PV Cable
HS Code: 854420
4mm2 ,100m/roll

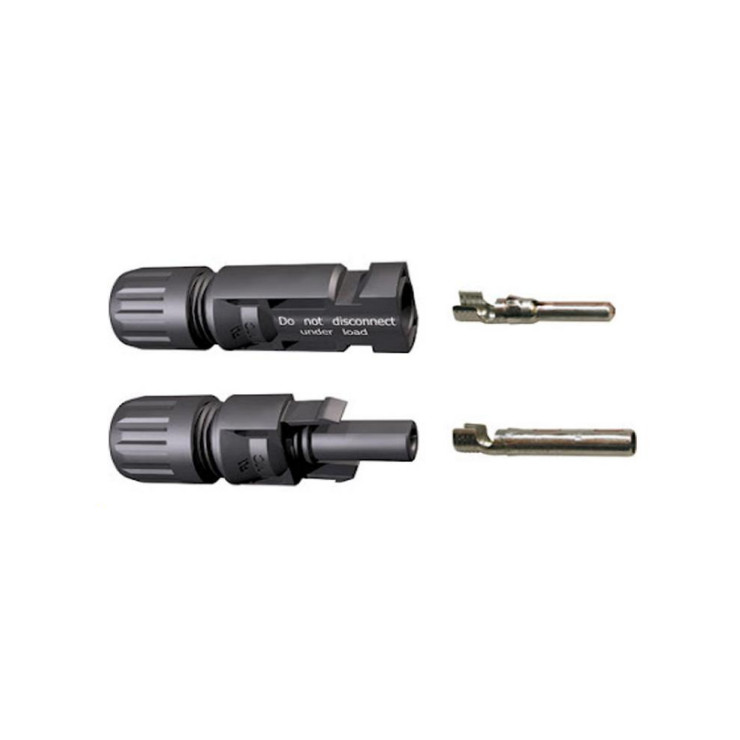

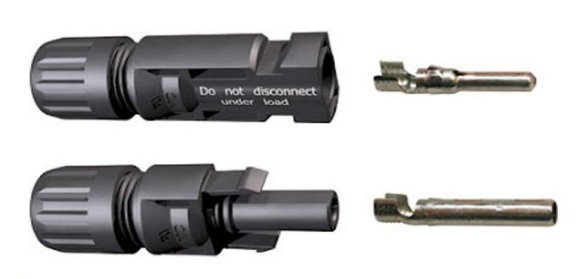

6. MC connector
HS Code: 853670
Model: 1500v 30A
MC connectors one to one
